BASIC INFORMATION
| STOCK CODE | 2504045 NEW DEFECTIVE | |||
|---|---|---|---|---|
| YEAR | 1997 | |||
| MAKE | NICHIYU | |||
| TRANSMISSION | ||||
| MODEL | FBRAW20-60-500MSF | |||
| POWER | BTT | |||
| SERIAL NO. | 141AB0*** | |||
| HOUR | 4816 | |||
| MAST | FSV5.0 | |||
| TIRE | SOL/SINGLE/SOL | |||
| CLASS | 2.0 TON | |||
| ATTACHMENT | SIDE SHIFT | |||
| APPROX. FORK LENGTH | 1220 MM | |||
| STOCK PLACE | This machine is in Japan. | |||

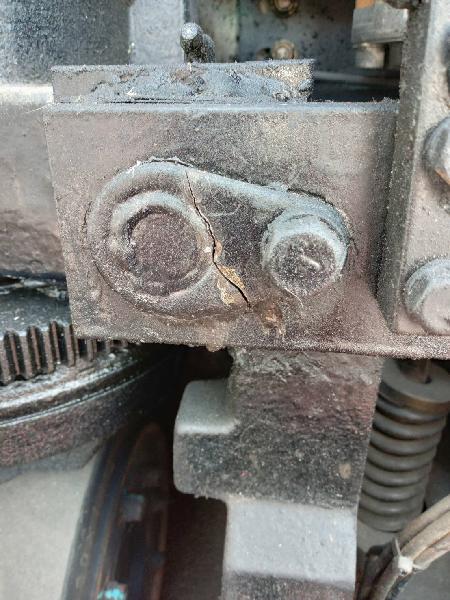

| NOTE | The bracket of the pin near the drive motor has a crack. The gear box has oil seepage. | |||
PHOTOS
ELECTRIC POWERED MODELS
| TARGET | CHECK POINTS | RATING | |
|---|---|---|---|
| BATTERIES & RECHARGER | VISUAL INSPECTIONS | RUST ON BOX AND/ OR TERMINALS | C |
| NON ORIGINAL CELL MIXED | A | ||
| CABLE AND CONNECTORS (BROKEN) | C | ||
| LEVEL OF ELECTROLYTE FLUID | C | ||
| RECHARGE FUNCTION | CHARGING STARTS OR NOT | E | |
| TOTAL VOLTAGE & SPECIFIC GRAVITY SAMPLE | VOLTAGE AND GRAVITY (SAMPLE) PRE CHARGE | D | |
| VOLTAGE AND GRAVITY (SAMPLE) POST CHARGE | - | ||
| BASIC FUNCTIONS | CONTROL PANEL | DISPLAY PANEL | C |
| FUNCTIONS | POWER ON/ OFF SWITCH | C | |
| FORWARD AND REVERSE | C | ||
| LIFTING UP/ DOWN, TILTING | C | ||
COMMON
| TARGET | CHECK POINTS | RATING | |
|---|---|---|---|
| STEERING SYSTEM | REAR AXLE | CENTER-PIN | - |
| KING-PIN | - | ||
| TIE ROD-END | - | ||
| POWER STEERING CYLINDER | OIL LEAKAGE / CRACK / SCRATCHES | C | |
| BRAKE SYSTEM | FOOT BRAKE | FUNCTIONS | C |
| HAND BRAKE | LEVER/WIRE | C | |
| EFFECTIVENESS | C | ||
| LOAD | MAST | ROLLER(PLAY, RUTTLE) | C |
| FORKS | WEAR/ WRAP/ BENT | C | |
| FINGER BOARD, ROOLER | PLAY/ RUTTLE | C | |
| LIFT CHAIN | RUST/KINK | C | |
| LOAD TEST | SIMPLE TEST | C | |
| NATURAL DISCENT | (A=NONE/ B=MINOR/ C,D=MAJOR) | A | |
| HYDRAULIC SYSTEM | HYDRAURIC OIL TANK | OIL LEAK/ CRACK/ SCRATCH | C |
| CONTROL VALVE | OIL LEAK/ CRACK/ SCRATCH | C | |
| HYDRAULIC OIL PUMP | LEAKAGE | C | |
| LIFT/ CENTER CYLINDER | LEAKAGE | D | |
| TILT CYLINDER | LEAKAGE | C | |
| ATTACHMENTS | LEAKAGE | C | |
LEGEND
| A:EXCELLENT | : ALMOST NEW/ NO WEAR AND TEAR | UNUSUAL SOUND AND NOISE |
| B:GOOD | : VERY LITTLE WEAR AND TEAR | A=NO NOISE / B=VERY SMALL NOISE |
| C:FAIR | : REASONABLE WARE AND TEAR | C= SMALL NOISE OR REASONABLE SOUND |
| D:POOR | : WORKS, BUT REPAIR(S) NEEDED | D= APPARENT NOISE OR LOUD NOISE |
| E:UNSATISFACTORY | : DOES NOT WORK |
